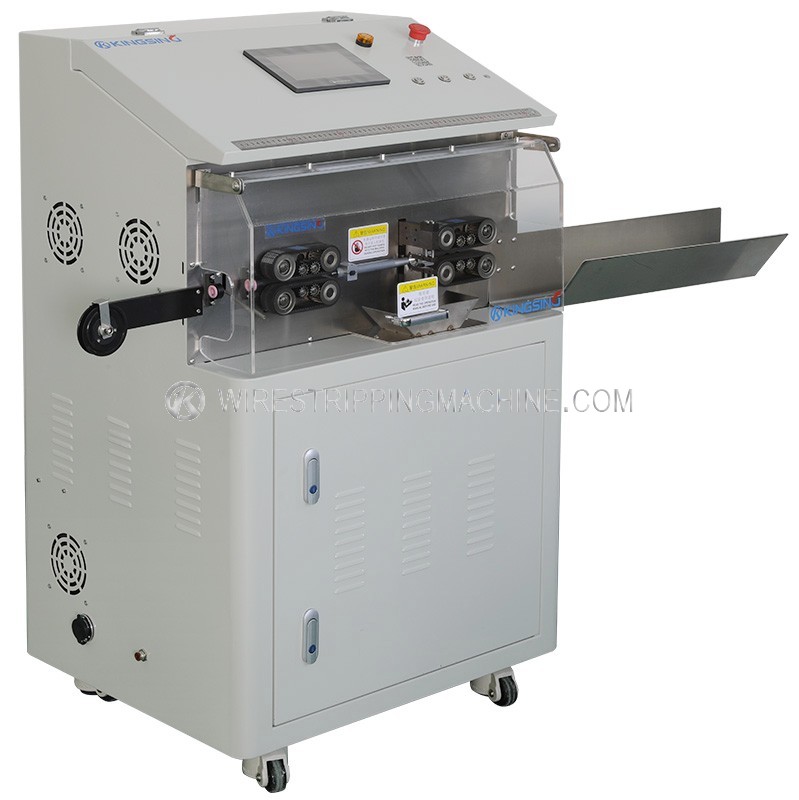

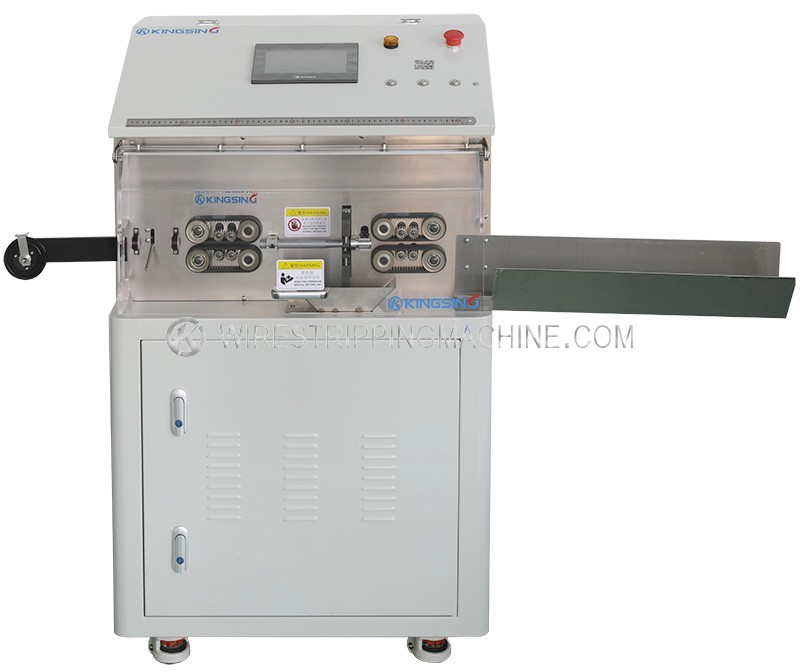

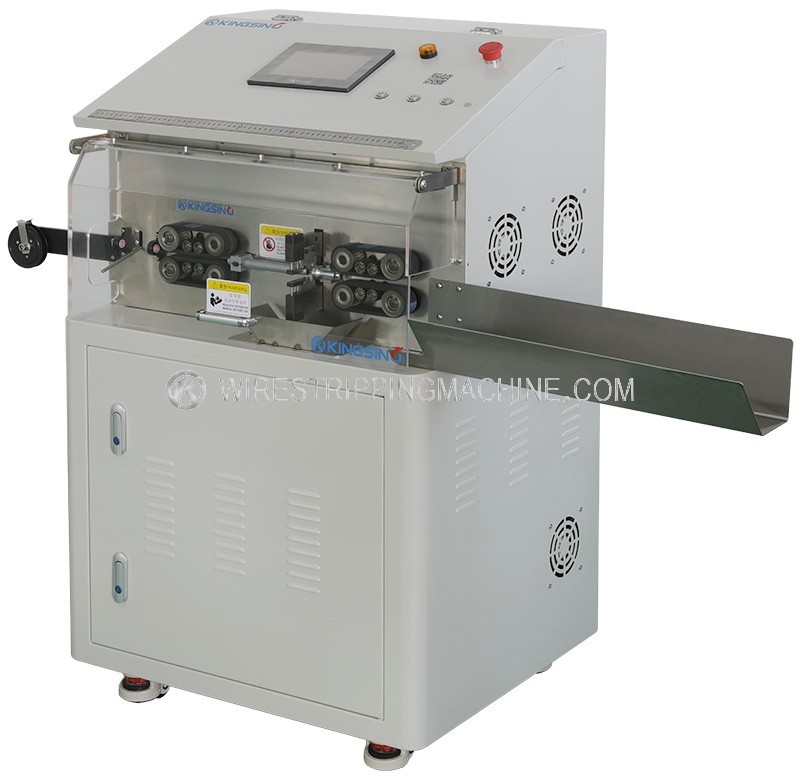

Multi-core Cable Wire Stripping Machine

  • Model:KS-W1021
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing multi-core sheathed wires, and can complete the stripping of the outer sheath and core wires at one time. The blade holder adopts a double-blade structure. The round blade is used for stripping the outer sheath, and the flat blade is used for stripping the core wire. The blade holder automatically shifts to switch the appropriate blade. This machine can also be used as an ordinary wire stripping machine. In addition to processing multi-core sheathed wires, it can also be used to process multi-strand copper wire cables.

  2. The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, which is fast and powerful.

  3. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the position of the center line of the wires can always be kept unchanged, and the wires are always aligned with the center of the blade opening, which can effectively prevent the stripping opening from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  4. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can be automatically opened for avoidance when stripping the wire head, and the jump guide function means that the wire inlet conduit is automatically lifted for avoidance when stripping the tail of the wire, which greatly increases the stripping length range.

  5. The program is powerful. Both the outer sheath and the core wire support the multiple stripping function, which can realize the intermediate stripping of the outer sheath and the core wire. The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again.

Download: (1) (2)

Applicable wire diameter: Φ2~9mm

Number of core wires: up to 5 cores

Outer sheath stripping length: wire head 0~200mm, wire tail 0~150mm

Core wire stripping length: 0~30mm

Maximum cutting length: 100 meters

Production efficiency: 800 pieces/hour (take the line length 500mm as an example)

Display mode: 7-inch color touch screen

Working voltage: 220V 50Hz

Rated power: 1100W

Air pressure: 0.5~0.7Mpa

Net weight: 128kg

Dimensions: 700*600*1180mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
