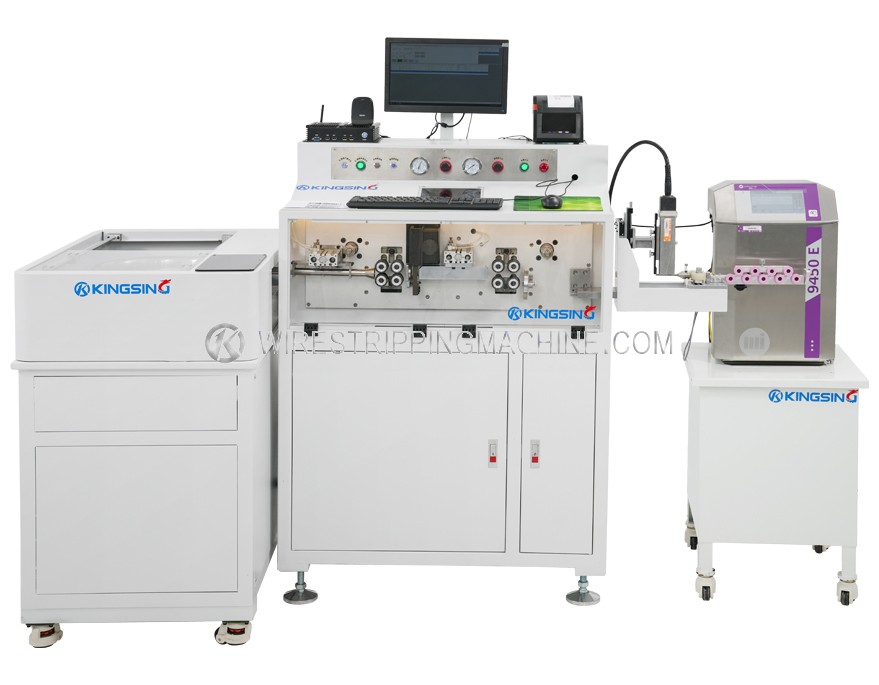

This is a servo-type automatic coding, stripping and winding machine, which integrates the functions of cutting, stripping, coding and winding, and is suitable for processing wires from 4 to 35mm2. The machine is equipped with a double-station winding and take-up device, which can automatically wind the processed wire into a circle, and the two winding reels can work alternately. While the operator collects the wound wire, the other winding reel can continue to work without stopping the machine.
The workmanship of the whole machine is precise, and the wire feeding, cutting, winding and other mechanisms are all driven by servo motors, and the cutting precision is high. 8-wheel wire feeding is adopted, which can effectively prevent the stripping wire from slipping, and has strong stripping ability. This machine has the function of automatic lifting wheel and jumping catheter. The pulley function means that the wire outlet wheel can be automatically opened to avoid when stripping the wire end, which can greatly increase the stripping length range of the wire end. The function of skipping the conduit means that the conduit can be automatically lifted to avoid when stripping the end of the wire, thereby greatly increasing the stripping length range of the end of the wire.
It adopts computer industrial control system, Windows operation interface, powerful software functions, and supports batch import of production data from Excel tables. The coding content and position can be directly input in the Excel table, and wires with different lengths and different coding content can be mass-produced at one time. Support network connection, can connect to local MES system through LAN, realize remote reading and setting parameters, remote production tasks and other functions.
The imes 9450 inkjet printer imported from France is used, the quality is stable and reliable, there are two types of white ink and black ink to choose from, and one inkjet printer can only use one color of ink. If you need to spray both white and black characters, you need to be equipped with 2 inkjet printers. The inkjet printer is directly controlled by the computer industrial control system, and the content of the inkjet code can be defined directly in the software, without inputting the printing content through the printer's own screen.
It can be equipped with a small ticket printer and a code scanning gun, which supports scanning the code to call out the processing parameters. The small ticket printer can automatically print the processing information data of the current wire, and also supports the printing of QR codes or barcodes. The printing format and content can be customized according to customer needs. Support non-standard customization, the software system of this machine can also be applied to other types of wire stripping machines of our company, for example, it can realize automatic coding of 300 square wire stripping machines, automatic coding of multi-core sheath wire stripping machines, etc.
Applicable wire diameter: 4~35mm2 (AWG12~2)
Maximum cutting length: 100 meters
Cutting accuracy: ±(0.5+L*2‰) L=cutting length
Stripping length: 0~200mm (half stripping can be longer)
Inner diameter of coil: ≥180mm
Coil outer diameter: ≤300mm
Inkjet printer model: France Imaje 9450
Operation interface: computer industrial computer, Windows system
Motor Type: Servo Motor
Working voltage: 220V/50Hz
Air pressure: 0.4~0.6Mpa
Net weight: 405kg
Optional functions: inkjet code, loop take-up machine, small ticket printer, code scanning gun, etc.
