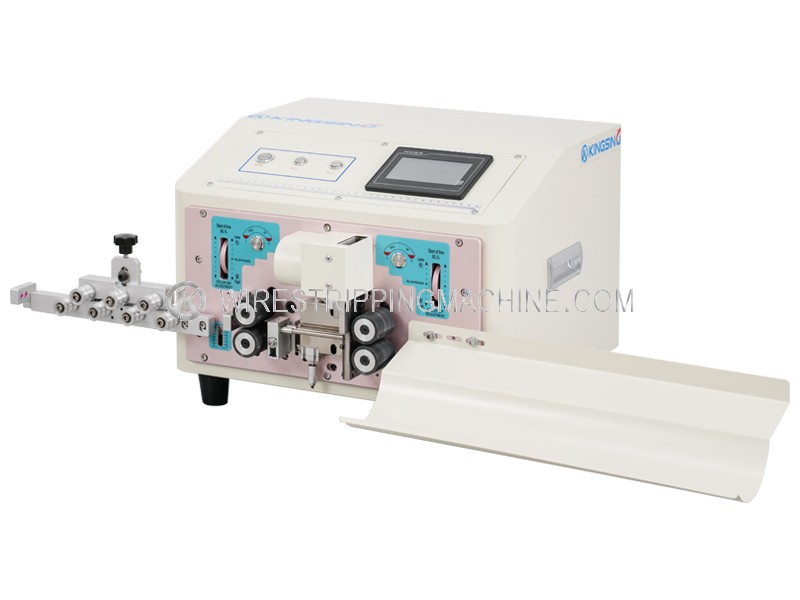

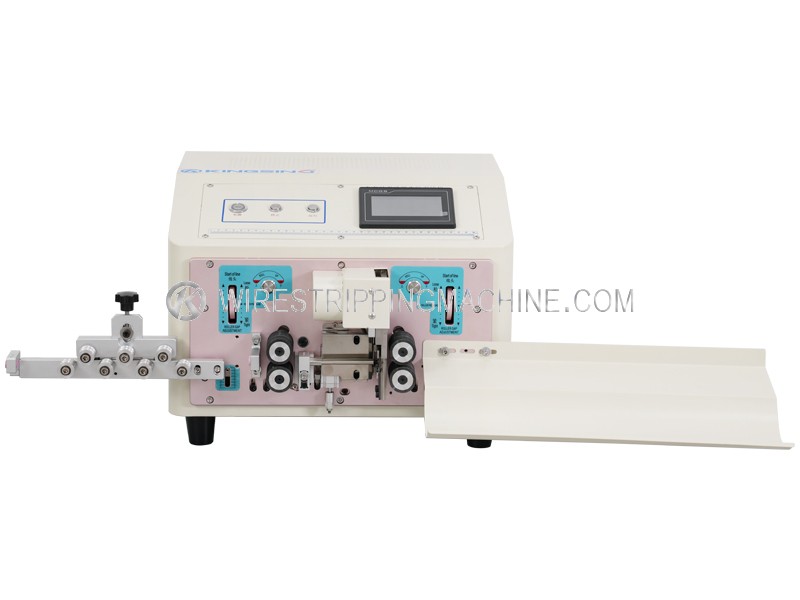

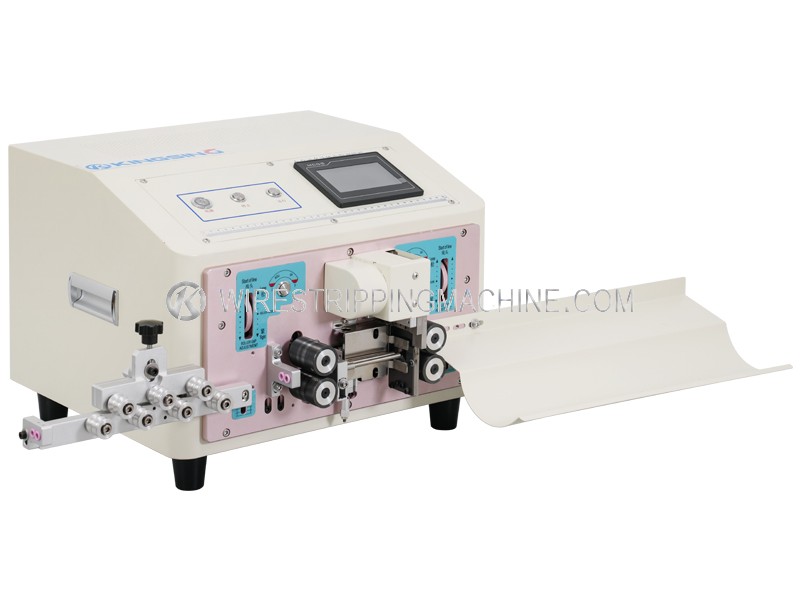

Multi-core Sheathed Wire Stripping Machine

  • Model:KS-W611 Series
  • Net. Weight:
  • Dimension:

This series of wire stripping machines is specially designed for processing multi-core round sheathed wires. It supports stripping the outer sheath and core wires at the same time. There are 2 sub-models in total (see technical parameters for details). The special blade holder design supports the installation of 2 sets of blades at the same time. The outer sheath is stripped with a round blade, and the core wire is stripped with a flat blade. It is especially suitable for processing sheath wires with less than 6 cores and an outer diameter of less than 7mm. The core wire supports full stripping and half stripping. The outlet wheel has the function of automatic pulley. When stripping the wire end, the outlet wheel can be lifted up automatically to reduce the resistance of the wire stripping. The maximum stripping length of the wire end can reach 120mm.

Download: (1)
ModelFeaturesApplicable wire diameterCore wire quantityProductivity
KS-W6112
single wire≤Φ7mm≤6 cores800~1300 pieces/hour
KS-W6113
double wire≤Φ4mm≤3 cores1500~2000pieces/hour

Cutting length range: 0~100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Outer sheath stripping length: wire head 0~120mm, wire tail 0~35mm

Core wire stripping length: wire head 0~30mm, wire tail 0~15mm

Program memory function: up to 100 groups of programs can be saved

Working voltage: 220V/50Hz

Rated power: 430W

Air pressure: 0.4~0.6Mpa

Net weight: 33kg

Dimensions: 460x350x385mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
