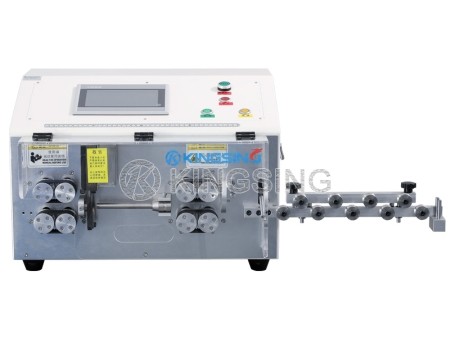

Heavy-duty Cable Stripping Machine

  • Model:KS-W619
  • Net. Weight:
  • Dimension:
  1. This machine adopts belt feeding to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, with fast speed, strong power and small error.

  2. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the position of the center line of the wires can always be kept unchanged, and the wires are always aligned with the center of the blade opening, which can effectively prevent the stripping opening from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  3. The program memory function can store the processing parameters of different wire materials in different program numbers. When the wire is processed again, the corresponding program can be called out with one key, and one machine can complete the processing of various wires, which is very versatile.

Download: (1)

Applicable wire core area: 4~150mm2

Maximum diameter of catheter: Φ30mm

Stripping length range: 0~140mm

Maximum cutting length: 100 meters

Cutting accuracy: 0.002*L (L=cutting length)

Program memory function: up to 70 groups of programs can be saved

Working voltage: 220V 50Hz

Net weight: 270kg

Dimensions: 920*600*1040mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
