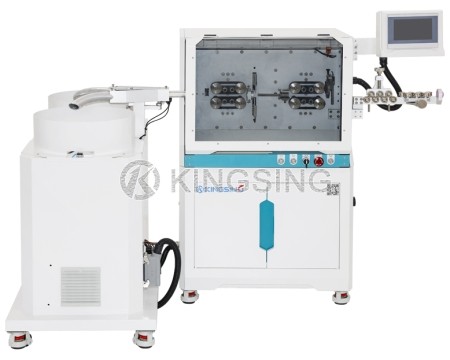

Cable Wire Stripping Twisting and Tin Soldering Machine

  • Model:KS-W117
  • Brand:KINGSING
  • Price:

This machine is designed for 2468, 2464, STP-1, STP-2, USB 2-core/3-core wires, flat cable, etc. KS-W117 has cutting, splitting, stripping and tinning function all in one machine, greatly improved working efficiency and saved labor costs. It adopts PLC control system, easy operation and quick adjustment. High automation level, large output.

Application: 2468, 2464, STP-1, STP-2, USB 2-core/3-core/4-core wire
Max. Splitting and Stripping length: 65mm
Processing Speed: 2000~2500pcs/h
Air Supply: 0.5~0.8mpa
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 300Kg
Dimension: 1100 x 700 x 1100mm
