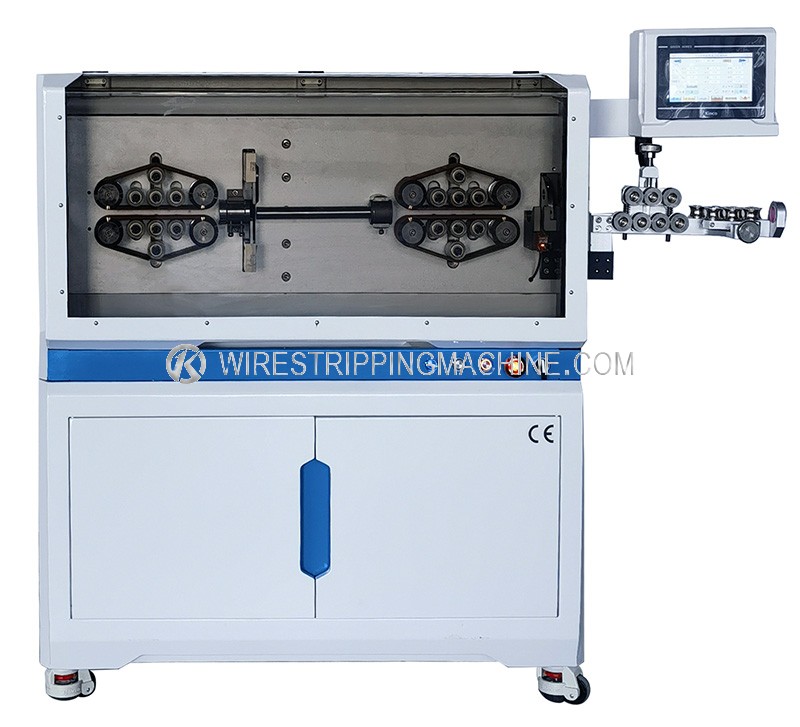

This series of wire stripping machines includes 3 sub-models (see technical parameters for details), which are specially designed for processing multi-core sheathed wires. After stripping the outer sheath, the inner core wires can be automatically stripped, and the inner and outer layers are stripped at one time. . The blade holder adopts a double-blade structure. The round blade is used for stripping the outer sheath, and the flat blade is used for stripping the core wire. The blade holder automatically shifts to switch the appropriate blade. This machine can also be used as an ordinary wire stripping machine, in addition to processing sheathed wires, it can also process multi-strand copper wire cables.
The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, which is fast and powerful.
The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time, when processing wires of different thicknesses. The position of the center line of the wire can always be kept unchanged, and the wire is always aligned with the center of the blade opening, which can effectively prevent the stripping from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.
This machine also has the function of automatic pulley and jump guide. The automatic pulley means that the outlet pulley can automatically open for avoidance when stripping the wire head. The jump guide function means that when the end of the wire is stripped, the wire inlet conduit is automatically lifted to avoid it, which greatly increases the stripping length range.
The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.
Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:
A scribing jig can be added. For wires with a long stripping length and a tight sheath, the scribing jig can be used to split the wire sheath on both sides to reduce the stripping resistance.
Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.
Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.
With the addition of an automatic winding machine, the processed wire can be automatically wound into rolls for easy collection.
Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.
|Model||Applicable core area||Catheter diameter||Features|
6 ~ 70mm²
70mm2 wire stripping machine
6 ~ 70mm²
With stripping and scribing function
6 ~ 120mm²
120mm2 wire stripping machine
Full stripping length range: wire head 0~220mm, wire tail 0~100mm
Maximum half-stripping length: wire head 1000mm, wire tail 400mm (according to wire material)
Core wire stripping length: 0-50mm
Maximum number of core wires: <10 cores
Minimum glue length: 120mm
Maximum cutting length: 1000m
Operation interface: 7-inch color touch screen
Program saving: up to 100 groups of programs can be stored
Cutting accuracy: 0.002*L (L refers to the length of the cutting)
Hardware configuration: the knife post adopts servo motor, and the rest adopts stepping motor (can be customized)
Working voltage: 220V 50Hz
Net weight: 230kg
