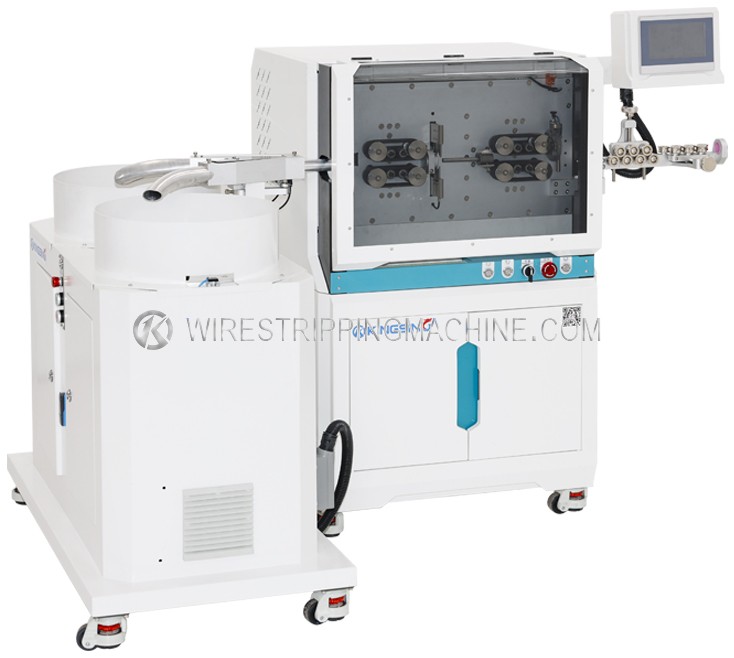

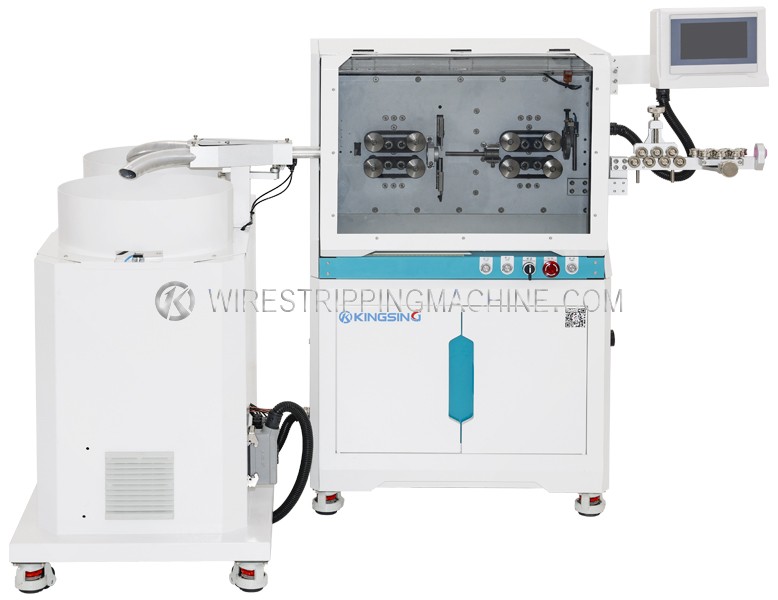

Electric Wire Stripping Machine With Double-bowl Coiling System

Display: 7-inch HMI (Human-Machine Interface)

Functions: Automatic length cutting and stripping for single-core wires, multi-core cables, and shielded cables

Wire Types: Single-core wires, multi-core cables, shielded cables, electrical wires, PVC, etc.

Wire Diameter: 0.75~30 mm²

Coiling Diameter: 200–360 mm

Coiling Speed: 2 m/s

Cutting Length: 1~999999.99 mm

Cutting Tolerance: Within 0.002 × L (L = cutting length)

Stripping Length: Front full strip: 1~200 mm; Front half strip: 1~1500 mm

                             Rear full strip: 1~100 mm; Rear half strip: 1~300 mm

Production Rate: Up to 3500 pcs/h (depending on wire type)

Wire Feeding Method: Belt feeding, ensuring no marks or scratches (with stripping pressure function)

Height Adjustment: Digital control for roller height

Power Supply: 0.5 MPa clean air source

Net Weight: 140 kg

Coiler Dimensions (L × W × H): 570 × 1,050 × 935 mm

Machine Dimensions (L × W × H): 707 × 590 × 1140 mm
