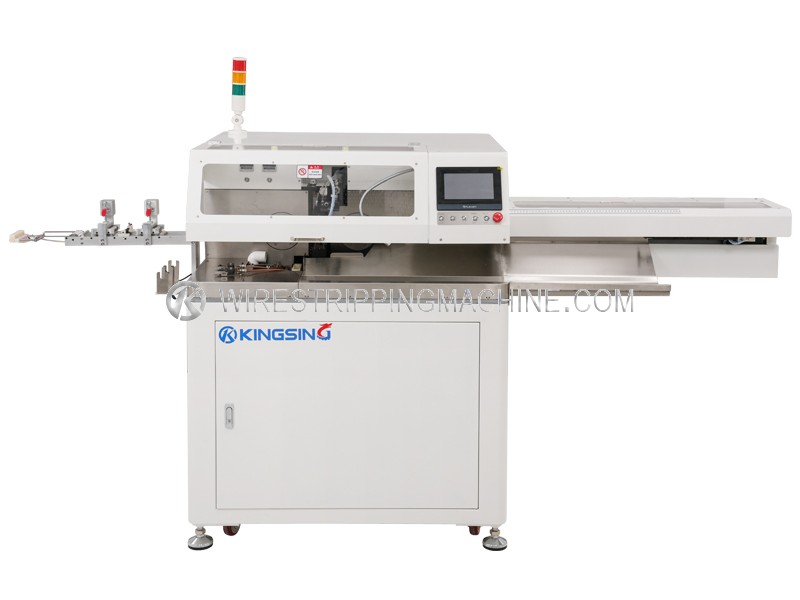

High-precision Servo Type Double-sided Wire Stripping and Tinning Machine

  • Model:KS-W582
  • Net. Weight:
  • Dimension:
  1. This is a high-precision servo type double-sided wire stripping and tinning machine, which integrates the functions of wire cutting, wire stripping, twisting, and tinning. It supports simultaneous processing of multiple wires, and the speed of processing 8 wires at a time can reach 12,000 wires per hour, with high production efficiency. In addition, the split wire function can be selected to support the processing of double wires.

  2. The workmanship of the whole machine is precise, using imported SMC cylinders and NSK bearings, Taiwan silver wire rod guide rails, and the main moving parts are driven by servo motors. Solder wire and flux can be added automatically, the height of the tin surface is basically kept stable, and the size of the tin is accurate. The side of the tin stove is equipped with a smoking pipe, which can be connected with the ventilation equipment in the factory. The color touch screen operation interface, the program memory function can store up to 100 sets of processing data, and the corresponding processing parameters can be called out with one key when switching products.

Download: (1)

Applicable wire diameter: AWG32~16 (0.05~1.5mm2)

Cutting length: 10~1000mm (can be customized)

Stripping length: ≤15mm

Twisted wire length: 3.5~10mm

Dip tin length: 0.5~10mm

Optional configuration: two-wire splitting function

Production efficiency: 9000~12000 pieces/hour

Operation interface: 7-inch color touch screen

Rated power: 3000W

Working voltage: 220V 50/60Hz

Air pressure requirement: 0.5~0.7Mpa

Net weight: 350kg

Dimensions: 1900*850*1600mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
