Double Station Wire Prefeeder With Pulley Block

  • Model:KS-W222
  • Net. Weight:
  • Dimension:

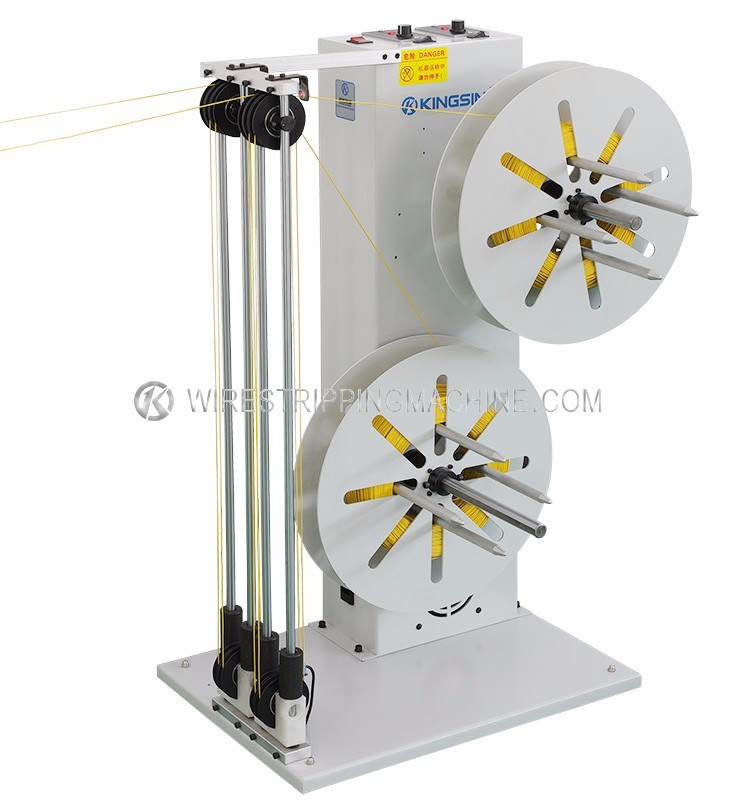

The double station wire prefeeder is a free-standing, electric-demand prefeeding machine designed to pull wire and cable from racks or barrels and provide a constant tension to downstream wire processing machines.

It is able to handle 2 different wires at the same time, each spool is driven by its individual motor, due to an electronic control system, the feed rate of both spools automatically adjusts to the actual requirement of any downline machine.

Download: (1)

Scope of Application: wire reel or loose coil
Available Wire Diameter: Φ0.5~4mm
Wire Spool Diameter: Max. 400mm
Wire Spool Width: Max. 250mm
Wire Spool Weight: Max. 20Kg
Wire Feeding Speed:
Storage Capacity: about 4m
Power Supply: 220V 50/60Hz
Net. Weight: 52Kg
Dimensions: 700×500×950mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
