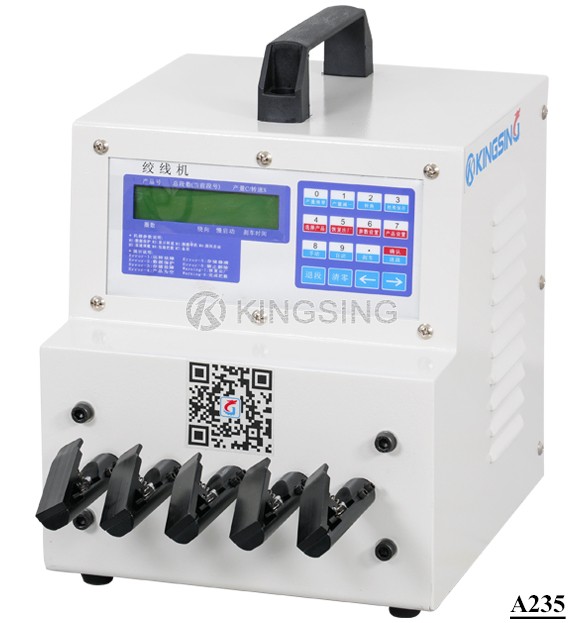

Multi-spindle Wire Twisting Machine

  • Model:KS-A23 series
  • Net. Weight:
  • Dimension:
  • Light and portable:

  • Small size, save space;

  • Excellent price/performance ratio;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Easy operation and low technical requirements for operators;

  • Motor directly drives shaft, no driving torque loss.

  • Zero maintenance, brushless, battery brakes, no belts or other mechanical wear, it is adopted advanced electronic control braking mode.

  • Sound industrial grade protection circuit design for this machine; ensure trouble-free working more than 20000h.

  • Different sections can be set separately to the different twisting directions, with positive and anti-counting function.

  • Different sections can be set to different twisting speeds, minimal noise, high and low-speed torque is constant.

  • Start fast, high-speed, can brake directly at high speed, high efficiency. When twist thin wires, in order to prevent the machine starts with too big tension, we especially design 0-9 slow starting mode for selection; Different sections can be set respectively with different slow startup modes.

  • Advanced LCD screen + backlight display mode, same as modern cell phones operating mode. Eliminated the disadvantage of digital tube cause eye fatigue and complicated Settings;

  • The system contains production statistics, bale number prompt, automatic forward function, twisting sections can be selected freely as needs.

  • Applicable scope: Stranding machine, twisting machine, winding machine, voice coil machine andother feeding systems etc.

Download: (1) (2) (3)
ModelKS-A231KS-A232KS-A235
Wire HolderOneTwoFive
Rotate Speed300 ~ 5500rpm
Available Wire Size3mm
Twisting DirectionClockwise / Anticlockwise
Twisting ModeMax. 20 sets
Twisting Cycle1 ~ 9999
Memory FunctionStore Max. 99 programs
Slow Staring Mode9 sets
DisplayLCD Screen
Power Supply220V / 50Hz 110V / 60Hz
Power Rating100W
Max Output Statistics9999
Net. Weight15Kg18Kg22Kg
Dimension220*240*240mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
