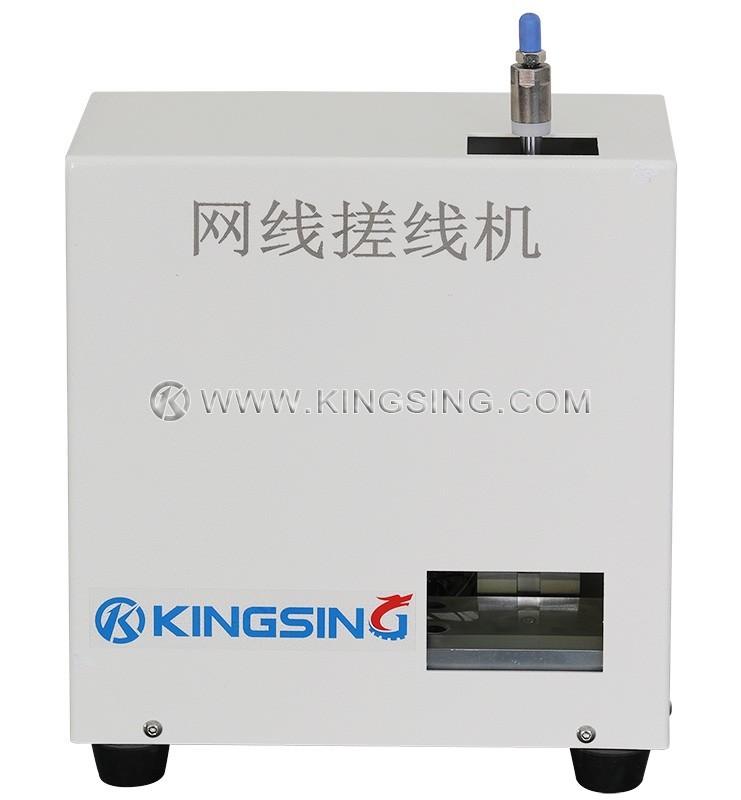

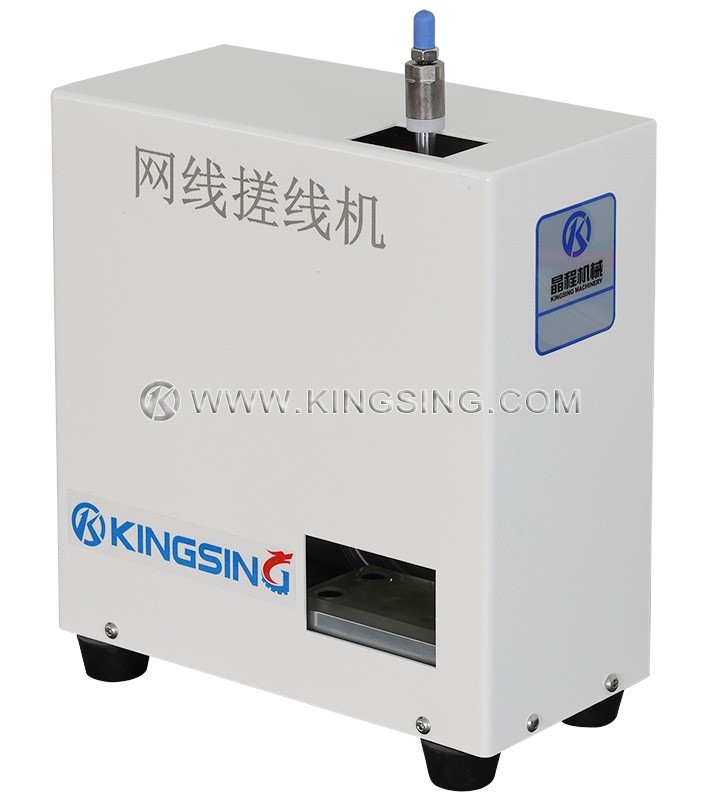

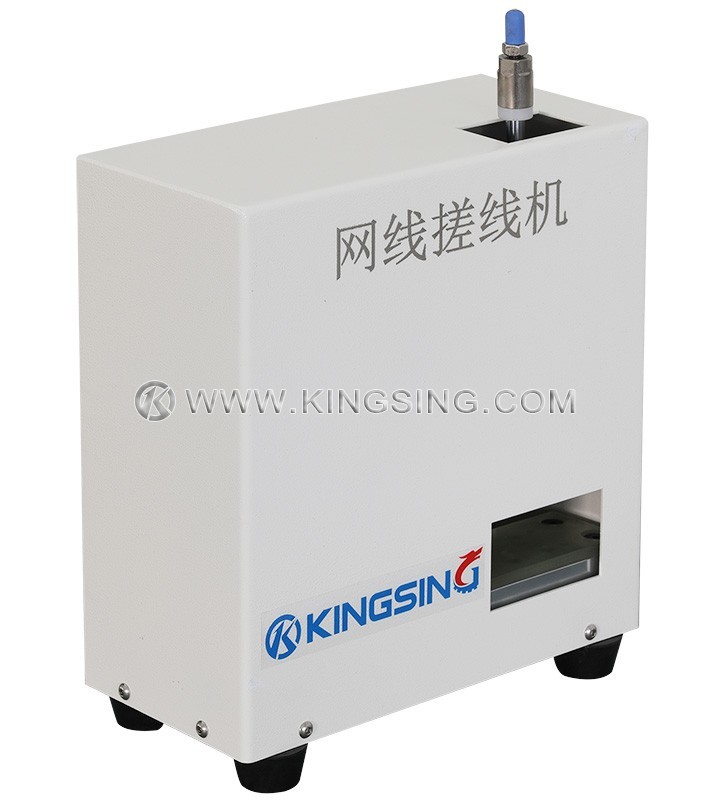

RJ45 Cable Twisted Pair Wire Seperating and Straightening Machine

  • Model:KS-W5110
  • Net. Weight:
  • Dimension:

This machine is especially designed for processing Cat5 and Cat6 cable pair twisted core wires, it's able to untwist the pair wire and straighten it automatically. Simple operation, easy to use, saving time and labor cost.


download: (1)

Available Cable: CAT5, CAT6, HDMI, etc.
Max. Straighten Length:45mm
Operation Mode:Foot Pedal Switch
Power: Pneumatic Cylinder
Air Pressure:0.5~0.8Mpa
Power Supply:AC220~240V
Adapter Output:DC24V 3.0A
Net Weight:8.2KG
Dimension:290×100×270mm
