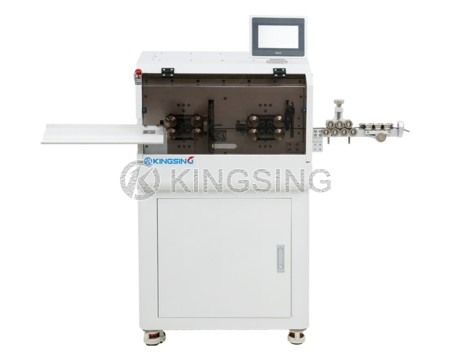

Automatic Cable Cutting Stripping Machine

  • Model:KS-W6191 Series
  • Net. Weight:
  • Dimension:
  1. This series of wire stripping machines includes 3 sub-models (see technical parameters for details), which are specially designed for processing large cables within 300mm2. The extended pulley feeding is used to replace the traditional roller feeding, which greatly increases the contact area between the feeding wheel and the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The tool holder is driven by a high-precision servo motor, which is fast and powerful.

  2. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time, when processing wires of different thicknesses. The position of the center line of the wire can always be kept unchanged, and the wire is always aligned with the center of the blade opening, which can effectively prevent the stripping from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  3. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can be automatically opened to avoid when stripping the wire head. The jump guide function means that when the tail of the wire is stripped, the wire guide is automatically lifted to avoid it, which greatly increases the stripping length range.

  4. The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.

  5. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. For example, install a branching device, which is used to automatically scribe and split the two ends of the double wire. Customize the model with double blades and shifting blades to realize different blades for cutting wires and stripping wires. It can be equipped with inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires; it can also be installed with a wire take-up robot and conveyor belt to ensure that the wires are placed straight and neatly into the receiving tray when processing long wires .

Download: (1) (2)
ModelApplicable core areaMax stripping lengthMax catheter diameter

KS-W6191A

10 ~ 90mm²

wire head:800mm

wire tail:260mm

Φ25mm

KS-W6191B

10 ~ 150mm²

wire head:800mm

wire tail:260mm

Φ33mm

KS-W6191C

25 ~ 300mm²

wire head:1000mm

wire tail:300mm

Φ50mm


Operation interface: 7-inch color touch screen

Program saving: up to 100 groups of programs can be stored

Cutting accuracy: 0.002*L (L refers to cutting length)

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
